全称 : 铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽钢带铠装控制电缆

国家标准 : GB9330

额定电压 : 450/750V

颜色 : 通常为黑色

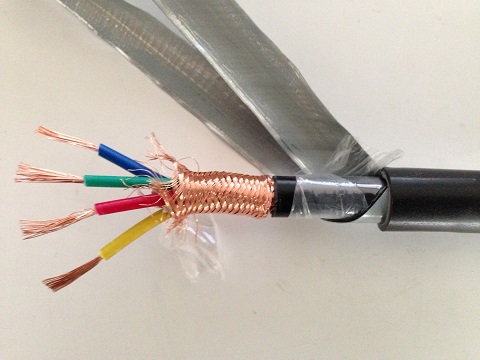

KVVP2-22铜带屏蔽铠装控制电缆和KVVP22屏蔽控制电缆***一不同的地方是屏蔽不一样，KVVP22是编织屏蔽，而KVVP2-22是铜带屏蔽，KVVP2-22具有更好的屏蔽作用，适用于干扰更强的场合。但是KVVP2-22和KVVP22的结构是一样的。

KVVP22，KVVP2-22钢带铠装控制电缆规格型号，技术参数表

芯数及导体标称截面 mm2	导体结构	绝缘厚度		铜带厚度	钢带厚度	护套厚度		电缆近似外径		电缆近似重量
	NO./фmm	mm		mm	mm	mm		mm		kg/km
	-	450/750V	0.6/1kV	-	-	450/750V	0.6/1kV	450/750V	0.6/1kV	450/750V	0.6/1kV
2×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.0	12.4	189	228
2×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.3	12.7	202	242
2×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	12.2	13.2	236	265
2×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	13.4	14.0	287	306
2×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	14.4	15.8	340	387
2×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	15.4	16.8	404	454
2×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	19.2	19.4	598	607
3×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.3	12.8	207	249
3×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.7	13.1	223	266
3×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	12.6	13.7	264	295
3×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	13.9	14.5	328	348
3×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	14.9	16.4	397	450
3×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	16.0	17.5	483	538
3×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	20.1	20.3	727	736
4×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	11.9	13.5	230	278
4×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.3	13.8	250	299
4×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	13.4	14.4	300	335
4×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	14.8	15.4	379	400
4×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	15.9	17.5	466	526
4×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	17.2	18.7	574	638
4×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	21.7	21.9	877	886
5×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.5	14.2	255	308
5×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	12.9	14.6	278	334
5×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	14.2	15.3	338	377
5×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	15.8	16.4	433	455
5×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	17.0	18.7	538	407
5×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.4	20.1	671	743
5×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	23.4	23.6	1033	1044



芯数及导体标称截面 mm2	导体结构	绝缘厚度		铜带厚度	钢带厚度	护套厚度		电缆近似外径		电缆近似重量
	NO./фmm	mm		mm	mm	mm		mm		kg/km
	-	450/750V	0.6/1kV	-	-	450/750V	0.6/1kV	450/750V	0.6/1kV	450/750V	0.6/1kV
6×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.2	15.0	278	336
6×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.6	15.4	305	365
6×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.0	16.2	373	415
6×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	16.8	17.4	482	505
6×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.2	20.0	604	679
6×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	19.7	21.5	770	852
6×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	25.2	25.4	1195	1207
7×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.2	15.0	286	346
7×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.6	15.4	316	378
7×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.0	16.2	389	432
7×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	16.8	17.4	508	531
7×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.5	1.8	18.2	20.0	644	721
7×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.5	1.8	19.7	21.5	827	912
7×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.8	25.2	25.4	1291	1302
8×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	13.8	15.7	313	380
8×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	14.3	16.3	347	416
8×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	15.8	17.1	430	4778
8×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.5	1.8	17.8	18.4	567	592
8×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	19.8	21.3	740	809
8×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	21.4	23.0	939	1012
8×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	1.9	27.0	27.2	1440	1452
10×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	15.3	17.5	368	448
10×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.0	18.2	410	492
10×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	17.8	19.2	513	569
10×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	20.6	20.8	702	711
10×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	22.5	24.3	896	981
10×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.9	24.5	26.3	1143	1233
10×10	7/1.35	1.0	1.0	1×0.05	2×0.2	1.7	2.0	31.3	31.9	1766	1809
12×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	15.7	17.9	396	482
12×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.3	18.6	445	533
12×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	18.2	19.6	561	621
12×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	21.1	21.3	775	784
12×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	23.0	24.9	1000	1093
12×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	25.2	27.0	1288	1387
14×0.75	1/0.97	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.2	18.6	430	523
14×1	1/1.13	0.6	0.8	1×0.05	2×0.2	1.5	1.8	16.9	19.3	485	581
14×1.5	1/1.38	0.7	0.8	1×0.05	2×0.2	1.5	1.8	18.9	20.4	617	681
14×2.5	1/1.78	0.8	0.8	1×0.05	2×0.2	1.7	1.8	22.0	22.2	858	868
14×4	1/2.25	0.8	1.0	1×0.05	2×0.2	1.7	1.8	24.0	26.0	1117	1220
14×6	1/2.76	0.8	1.0	1×0.05	2×0.2	1.7	1.8	26.3	28.3	1447	1558
